FlexPro
Multi-Purpose Laser Machine
The FlexPro® laser system provides the speed of galvanometer processing with the versatility of an XY motion system.
Innovative and Cost-Effective
Preco integrates advanced laser technology with reliable equipment, offering innovative and cost-effective solutions for web-based laser cutting, scoring, slitting and kiss-cutting.
The WebPro Series of digital laser cutting systems are rapidly re-configured for changing job requirements and are the ideal match for short-run jobs in all sizes and materials. The AcuBeam™ control system operates in a user-friendly Windows® environment, allowing you to control the entire system. As a result, changeovers are as simple as opening a file without the need or costs of tooling.
Applications
- Advanced Wound Care
- Body Sensors & Wearables
- Cosmetics – Hydrogel Face Masks

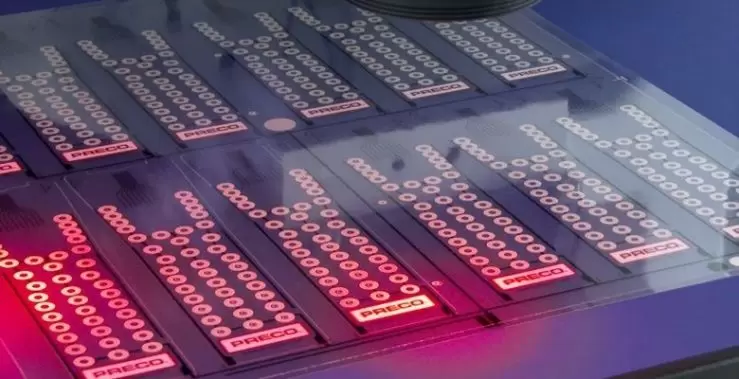

- Flexible Circuits
- Food Safety Devices
- Microfluidics
- Point-of-care, diagnostic test strips
Fast speeds with an exclusive design.
This unique system allows you to laser process web widths from 25.4 mm to 610 mm (1 - 24 in.) at high production rates. Our exclusive motion design processes materials at speeds 9.14 m to 60.96 m (30 - 200 ft.) per minute, while maintaining consistent PLI across the entire process. Typical accuracies range ± 0.076 mm to 0.254 mm (0.003 - 0.010 in.) based on part size and geometry.
The WebPro incorporates 200, 300, 400, 600 or 1000 watt CO2 lasers with 9.3 to 10.6 µm wavelengths, as well as UV lasers. These lasers offer a reliable, precise beam that results in clean and sharp laser processed edges.
MATERIALS
- Acrylic Foam Adhesives
- Hydrogel
- Hydrocolloid
- Non-Wovens
- PET
- PLA
- PMMA
- PP, BOPP
- Pressure Sensitive Adhesives
- Silicone Adhesives
CAPABILITIES
- Laser Ablation
- Laser Marking
- Laser Cutting
- Laser Etching
- Laser Kiss-Cutting
- Laser Perforating
- Laser Scoring / Scribing
- Via Drilling (Micro-via)
Features & Benefits
Just some of the many benefits of buying a Preco WebPro Series laser machine.
Fast Processing Speed
Cuts parts from moving webs for maximum production rates
Soft tooling process, that is 'flexible'
Eliminates tool and die fabrication, maintenance, and storage costs
AcuVision
Registers parts before processing and aligns cut pattern to fiducials - either printed or mold marks. Inspection of parts available after processing for 100% quality control
Easy to use Windows® Based Software
Enables make-to-order processing of short-run or complex jobs
Ramp Up – Ramp Down Control
Eliminates scrap caused by overpowering of material at slower than normal processing speeds
Laser Cutting is a Forceless Process
Produces intricate patterns and fine details. Superior part quality that cannot be replicated using the die cut process
Vision Registration System
Single or dual cameras for X-Y-Θ positioning of the cut pattern to material features
Patented AcuPower™ Control
Adjustment of laser power "on-the-fly" based on the beam movement
Job Database
Reduces set-up time; consistent production from operator to operator
Tech Specs
Technical parameters are based on a baseline standard but all Preco WebPro Series laser machines can be customized to meet your product's needs.
| LB3100 | LB3200 | |
|---|---|---|
| System Footprint | Width: 3.2 m (10 ft. 6 in.) | Width: 3.2 m (10 ft. 6 in.) |
| Depth: 1.85 m (6 ft.) | Depth: 2.16 m (7 ft.) | |
| Height: 2.18 m (7 ft. 2 in.) | Height: 2.18 m (7 ft. 2 in.) | |
| Lasers | 1 | 1 – 2 |
| Output Heads | 1 | 1 – 2 |
| Web Width (Nominal) | Standard 305 mm (12 in.) | Standard 610 mm (24 in.) |
| 3-Axis Scan Head | Fixed 305 mm (12 in.) | 1: Adjustable 305 - 610 mm (12 - 24 in.) 2: Fixed 330 mm (13 in.) with 25 mm(1 in) cross-web overlap (13 x 24 in total processing area) |
| Lower Vacuum Work Support | Included (featuring a debris collection bin) | |
| Laser Wavelengths | 9.3 µm, 10.2 µm or 10.6 µm | |
| Safety Enclosure | Class 1 | |
| AcuBeam™ Software | Windows® based with full graphical / CAD interface | |
| Laser Power | 100 – 1,000 Watts (Other laser sizes available per request) | |
| Power Requirements* | Controller & Chiller (Int) : 380-420VAC, 3PH, 50Hz | |
| Controller & Chiller (US): 200-230VAC, 3PH, 60Hz | ||
The above data is subject to change. All specifications are dependent on laser power, material type and thickness, and process platform - consult with a Preco associate.
* Laser Chiller may be powered separately or by the laser system.
